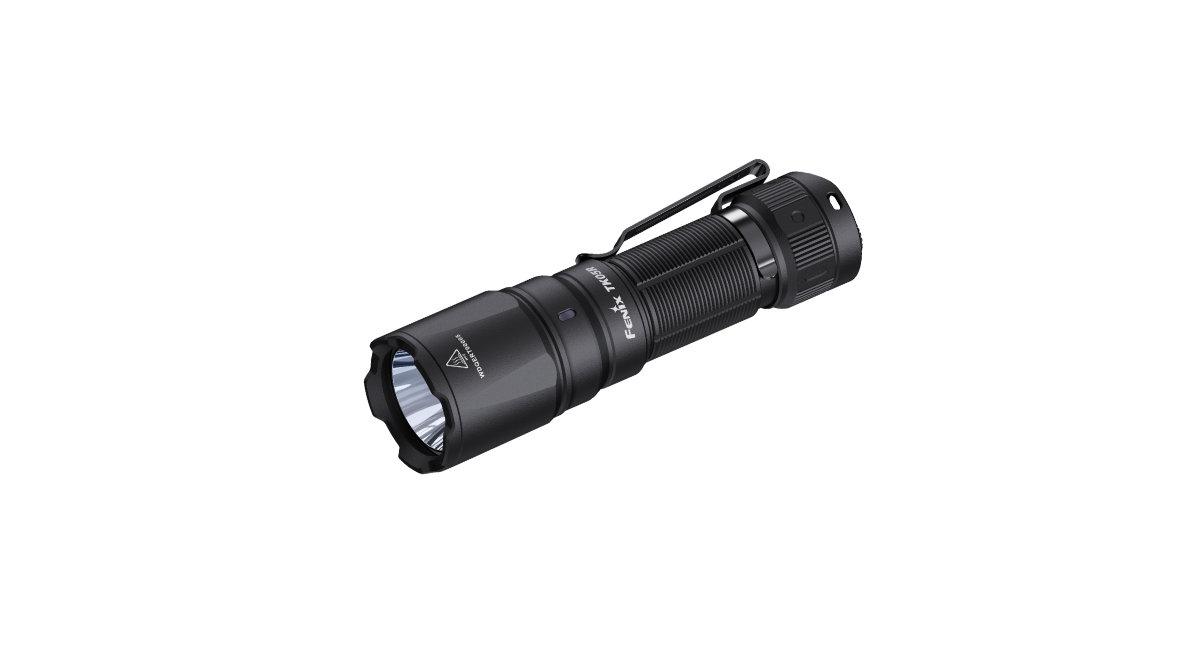

Fenix TK05R Rechargeable LED Flashlight

Fenix TK05R is a pocket-sized rechargeable tactical flashlight with easy control, with the option quick activation of the strobe and performance up to 1000 lumens. It is equipped with a top-notch LED Osram CSLPM1.TG, thanks to which it has a perfectly focused cone and shines into the distance 450 meters. The lamp uses dual tactical switch, which allows faster and more reliable control in crisis situations. The head of the lamp is equipped with a striking rim, so the lamp can be used to break glass or for self-defense. The robust design allows the lamp to be used on long weapons, making it suitable for professionals, armed forces and hunting. The lamp is powered by one compact Li-ion 18350 1100mAh battery (included in the package), which charges directly in the lamp via a modern USB-C connector and supplies energy up to 14.5 hours The solid and waterproof design makes this tactical flashlight primarily suitable for harsh outdoor conditions and for use in security forces, search and rescue operations, and hunting.

All parameters of the luminaire (luminous flux, battery operating time, waterproofness, afterglow and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

Fenix TK05R flashlight parameters

• A powerful Osram CSLPM1.TG LED with a lifespan of 50,000 hours is used.
• Four power modes: 1000 lumens (0.8 hours) -> 350 lumens (1.75 hours) -> 30 lumens (14.5 hours) -> strobe 1000 lm with variable frequency.
• Battery life is measured with a rechargeable 18350 Li-ion battery with a capacity of 1100 mAh (included).
• The USB-C charging port is hidden under a rubber cover on the body of the lamp.
• Battery charge indication.
• Highly efficient smooth reflector for a light cone with a range of up to 450 meters (50600 cd).
• Intelligent overheating protection, low battery warning.
• Dimensions 11.5 cm (length) x 3.2 cm (head diameter) x 2.35 cm (body diameter).
• Weight 124 grams (including battery).
• Solid body construction made of hardened aircraft aluminum.
• Durable, scratch-resistant surface – Type III hard anodized.
• Shockproof against a drop from a height of 1 meter.
• Waterproof and dustproof according to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• Tempered ultra-clear glass lens with anti-reflective coating.
• Dual tactical switch at the end of the flashlight (instant on/off function with a press, instant strobe).
• Trapezoidal threads highly resistant to wear.
• The flashlight comes with an ARB-L18-1100 battery, wrist strap, USB-C charging cable, spare O-ring, and belt holster.
• As an optional accessory, you can purchase: traffic cone AOT-03.
• The following accessories are also compatible with the flashlight: ALG-15 quick-release rail mount, ALG-00 quick-release rail mount, Fenix ALG-16 M-LOK mount, Fenix ALG-18 barrel mount, metal magnetic barrel mount, plastic magnetic barrel mount, flashlight mount on optics, metal optic mount, Fenix ALD-05 strap for using the flashlight on a helmet, FB-1 bike mount, Fenix bike mount.
• It is also possible to purchase a USB power adapter and a USB car adapter for the lamp.

Using the TK05R lamp

From the factory, there may be a battery inside the lamp insulating cap. Before using it for the first time, remove the battery remove.

For on/off press the larger tactical button located at the end of the flashlight, for immediate activation Press the secondary toggle button at any time during operation. switch between modes power. To switch to flash mode when the light is on, hold the switch button for approximately 0.5 seconds. To switch the light directly to strobe mode, press and hold the switch button.

Intelligent overheating protection – Due to the high power output of the lamp, its temperature increases. If the temperature exceeds 55°C, the power is automatically reduced. Once the temperature drops below 55°C, the highest power can be used again.

Battery charge status indication – the light always indicates the battery charge level three seconds after switching on. Green indicates sufficient charge level (100% – 85%), green flashing 85% – 50%, steady red 50% – 25% and flashing red indicates a critically discharged battery (25% – 1%). If the battery is discharged, the light will gradually start to automatically switch to lower power modes.

Charging – lift the rubber cover of the charging connector on the side of the lamp and connect the included cable (USB-C connector), connect the other end of the cable to a computer, or a USB adapter to a power outlet or car. During charging, the side indicator lights up red. When fully charged, it lights up green. Charging a fully discharged battery takes approx. 1.5 hours. The lamp cannot be used while charging.

Warning

• Use only high-quality 18350 rechargeable batteries with protective electronics.
• Insert the batteries with the positive pole facing the head of the lamp.
• If the protective rubber rings appear damaged after a long period of use, replace them. The rings should also be lubricated to prevent erosion of the rubber. Following these rules will ensure that the lamp is properly protected against water.
• If the light is flashing, not switching to higher power modes, or not turning on, it could be for one of the following reasons:
  • The battery is discharged - charge or replace it.
  • The contacts inside the lamp are dirty - clean them with a cotton swab dipped in alcohol.
  • The head, body or back of the lamp are loose, tighten them.
