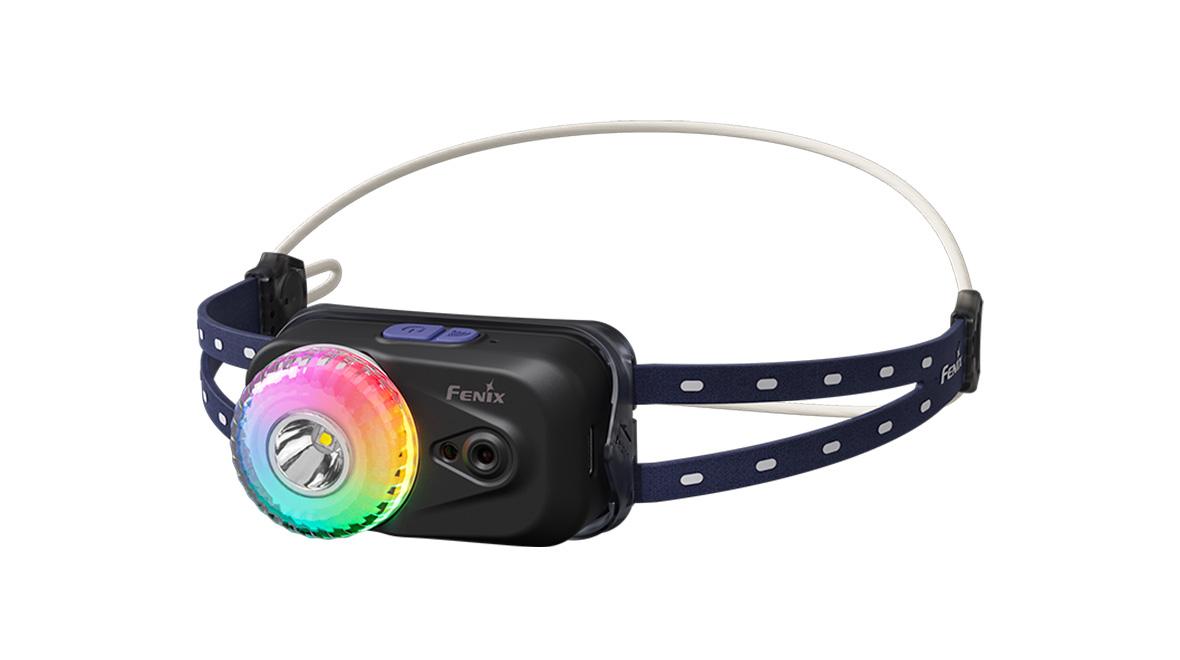

Fenix HL17R Rechargeable Headlamp – Black

Fenix HL17R is a multifunctional ultra-light headlamp that will illuminate you with a luminous flux of up to 500 lumens and afterglow 100 meters. Despite the weight only 65 grams hides an integrated 1000mAh a battery that is conveniently charged  USB-C  connector directly on the lamp body. The light source is a modern LED Luminus SST-20 with a cooler light shade and additional colored LEDs. The unique magnetic attachment of the headlamp in the holder allows it to be immediately removed and used as a handheld flashlight. Through supplied clip you can attach it to a backpack strap, pocket or belt. Thanks a strong magnet you can attach it to an iron surface and turn it into a work light or lamp, or snap clothes between magnets and attach it to a T-shirt without a breast pocket. Wear it on your head, in your hand, on your chest - there are no limits to your imagination!

The HL17R offers a total four levels of white light brightness and five atmospheric color modes. You need a strong light for a long distance for hiking, soft light on map reading, ambient light as lamp for camping or tent, or safety flashing light and signal light? This headlamp has it all. Function Gesture sensing allows you to turn the light on and off by waving your hand in front of the headlamp, so you can keep your hands free from mud, oils, food preparation while camping or anything else and the lamp will always stay clean. The headlamp retains waterproof according to IP66 standard, so it can withstand heavy rain without any problems. Reflective elements on the strap increase your safety when moving in the dark. Forget about the headlamp slipping off your head. Double elastic strap It perfectly distributes pressure and provides an almost "weightless" feeling when worn. You can wear the headlamp for hours and you won't even know it's there. Thanks to its versatility, low weight and durable design, the HL17R is a perfect choice for hikers, runners, campers, fishermen, DIYers, but also for everyday carrying in a backpack as an emergency or standby light.

All headlamp parameters (luminous flux, battery operating time, waterproofness, glow and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

Fenix HL17R headlamp parameters

• It uses a powerful white Luminus SST-20 LED and additional LEDs, all with a lifespan of 50,000 hours.
• Four white light modes: 500 lumens (2.8 hours) -> 150 lumens (5.5 hours) -> 30 lumens (23 hours) -> 5 lumens (96.8 hours).
• Five atmospheric modes: reading light 15 lumens (8.9 hours) -> red light 3 lumens (11.5 hours) -> red and blue flashing 3 lumens -> RGB 2 lumens -> Aurora 2 lumens.
• Optics create a wide cone with afterglow 100 meters (2630 cd).
• Uses a built-in battery with a capacity of 1000mAh.
• Charge status indicator.
• Charging via USB-C connector.
• Convenient control with light ring and switch.
• Unique touchless switching on and off using the function Gesture sensing (can be deactivated).
• The headlamp can be tilted in the holder and thus adjust the desired direction of light.
• The headlamp can be quickly removed from the holder and used as a handheld flashlight.
• The package includes a clip that allows you to attach the headlamp over clothing or attach it to a backpack strap, pocket, or belt.
• Made of durable plastic.
• The straps are provided reflective elements and on the back they turn into two elastic bands for a stable fit on the head and low weight.
• Shockproof against a drop from a height of 1 meter.
• Dimensions: 6.99 x 4.04 x 3.7 cm.
• Weight 65 grams (including battery and straps).
• Waterproof and dustproof according to IP66 standard (spraying with strong jets of water from all directions).
• The package includes a strap with holder, a back clip, and a USB-C charging cable.
• The headlamp can be purchased with a Fenix APB-20 case, a USB power adapter, and a USB car adapter.

Use

Power on/off and mode switching – When the headlamp is unlocked, press and hold the main switch for 0.5 seconds to turn it on/off. The light functions of the selected lighting mode are then switched by briefly pressing the same switch.

Switching between white light and colored lighting – Turn the light ring clockwise to select the lighting mode White light → Colored light.

Lock/Unlock – With the headlamp on, turn the light ring counterclockwise (to the lock position) to lock. Turn the light ring clockwise to unlock the headlamp and enter the previously used power of the currently selected lighting mode.

Memory for the last set power mode – The headlamp has a memory and turns on in the last set power mode of the selected lighting method.

Controlling the headlamp with gestures – When the headlamp is on, press and hold the sensor switch, the headlamp will flash white three times and the gesture sensing function indicator will flash blue, indicating that this function is activated. After activating this function, you can turn the headlamp on/off by waving your hand. When the headlamp is on, press and hold the sensor switch again to deactivate this function. Turning off or locking the headlamp deactivates the gesture sensing function. To use this function, reactivate it after turning on the headlamp. The sensing range is approximately 10 cm in front of the headlamp and may vary slightly depending on the material and color of the object being sensed, the ambient light, the selected light output, and the waving speed. The gesture sensing function uses an infrared sensor. If an object other than your hand moves within the sensing range in front of the headlamp, the headlamp can also be turned on/off.

Charging – Turn off the headlamp and plug the USB-C charging cable into the charging port. The indicator light is red while charging. It turns green when fully charged. The headlamp can be used in all modes except the highest while charging.

Battery charge status indication – Each time the headlamp is turned on or after pressing the button when the headlamp is off, the indicator LED will be activated for three seconds. If the indicator LED is green, the battery is charged to more than 85%. Green flashing means 50-85% capacity. If it is red, it is charged to 25-50%. Red flashing means less than 25% battery capacity remains.

Intelligent overheating protection – When using the headlamp in high power mode, a large amount of heat accumulates. When the headlamp reaches a temperature of 60°C or higher, it will automatically reduce the output by a few lumens to reduce the temperature. When the temperature drops below 60°C, the output will gradually increase again.

Low battery warning – If the battery voltage drops below the set level, the headlamp will gradually reduce the brightness to a lower level. When the lowest power is reached, the battery charge indicator will start flashing red to remind you to recharge the battery.

Warning

• Do not disassemble sealed parts yourself, this will void the warranty.
• Lock the headlamp to prevent accidental activation during storage or transport.
• When storing, check the headlamp every four months, or recharge it to approximately 50 % for optimal battery life.
• If the headlamp is flashing, not switching to higher power modes, or not lighting up, it could be for one of the following reasons:
  • The battery is low, charge it.
  • The headlamp is locked, unlock it.
